LDM- Wheel Speed & DS sensors

In stock
SKU: 1523824
Regular price $79.99
Regular price Sale $89.99 Sale price $79.99

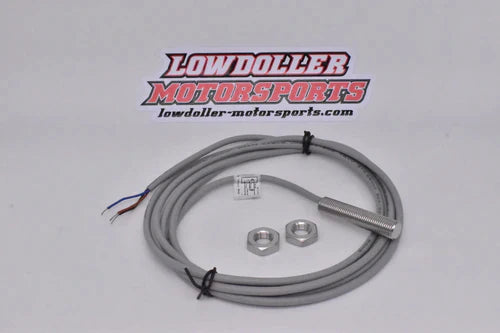

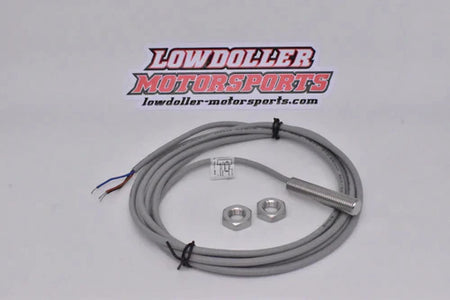

DRIVESHAFT SENSOR

Looking for an affordable replacement driveshaft speed sensor? Tired of setting gaps only to find it still isn’t reading properly?   Well, here’s the solution!

  • built in LED indicator light for setup
  • Triggered by ferrous material (Not magnets)

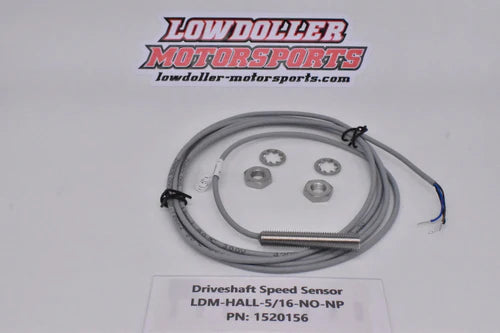

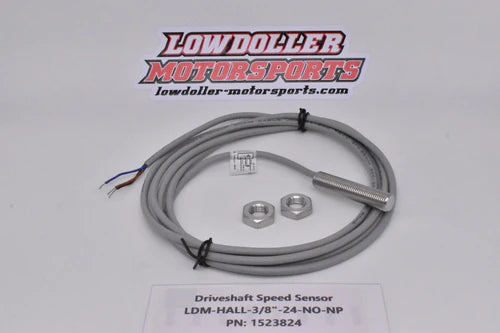

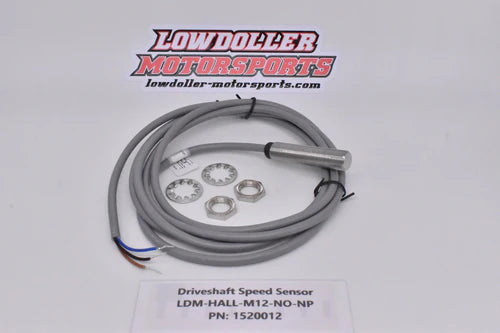

  • 3/8” 24, 5/16" X 24, & M12 BODIES
  • Stainless steel body
  • Detection range 0.1MM to 1MM
  • Flush mount
  • Supply voltage 10V-30V
  • Short circuited/reverse protection built in.
  • Working temperature -13F to 176F
  • IP67 rated (water proof)
  • Normally open signal
  • Max switching frequency 8,000HZ



wiring:

Brown = power supply (10-30VDC)

Blue = Clean ground

Black = Signal wire  (Outputs 0V) to data logger.



*LDM-MAG-HALL-5/16 Triggered by magnets (Not ferrous material)*
